158
JACKS AND PLUGS
.097" SUBMINIATURE PHONE PLUGS PHONE: 773 792-2700
* Please visit the product pages on our website for the most up-to-date product information

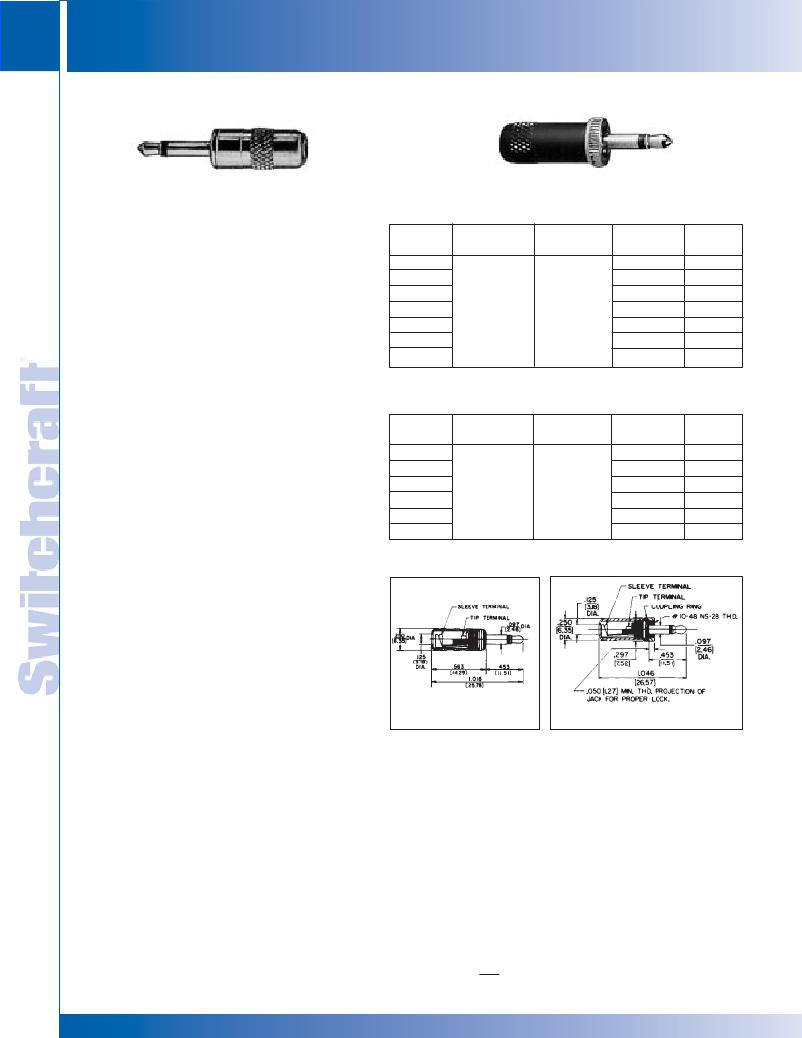

.097" SUBMINIATURE PHONE PLUGS
FEATURES
Numbers 850, 880
MICRO-PLUG
Number 851
? Subminiature, 2-conductor phone plugs are 1/3 the size
of standard phone plugs, with the uniformity,
dependability, and quality construction of Switchcraft
Littel-Plug ? and Tini Plug ? phone plugs. 50 W soldering
with 60/40 solder recommended for terminating.
? Switchcraft’s 852, 853, 857, 858, 882 and 883 have a
wider insulator between the tip and the sleeve. The wide
insulator prevents the tip of the plug from shorting out
between the tip spring and the sleeve of the jack
during insertion.
Part
Number
850
852
855
857
880
882
2P1419
Terminals
Solder Lug
Mating
Jacks 1
TR2A
Handle
Black
Black
Red
Red
Natural
Natural
Less Handle
Handle
Part No.
T18623
T18623
T18622
T18622
T18621
T18621
–
Micro-Plug ? PLUG - Sleeve terminal incorporates cable
clamp. May be clamped over mated braid to anchor
shielded cable; solders readily for perfect electrical
LOCK MICRO-PLUG
connection. Terminals and plug body interlocked
mechanically. Accommodates cable up to .125"
Combined length, handle and tip: 1.106" outside diameter,
.250" outside diameter handle.
LOCK Micro-Plug ? PLUG - Similar to Micro-Plug plug,
with addition of integral threaded collar that fastens to
bushing of mating jack to prevent accidental disconnect.
Requires at least .05" of exposed and usable thread on
jack bushing to lock securely. Ideal for secure connections
Part
Number
851
853
856
858
881
883
Terminals
Solder Lug
Mating
Jacks 1
TR2A
Handle
Black
Black
Red
Red
Natural
Natural
Handle
Part No.
T23123
T23123
T23122
T23122
T23121
T23121
in critical medical and sensitive scientific instruments.
Combined length, handle and tip: 1.046". Various molded
cable assemblies incorporating Micro-Plug Subminiature
phone plugs with plastic handles are available.
SPECIFICATIONS
MATERIALS
Tip, Rod and Body (also integral Coupling Collar on
Lock Micro-Plug): Nickel-plated copper alloy.
Insulation: Molded thermoplastic.
Sleeve Termination and Cable Clamp:
Tinned copper alloy.
1. Switchcraft Part Numbers. Other mating plugs are available.
Handle: Anodized aluminum; red, black or natural finish.
MECHANICAL
Life rating: 5,000 insertion/withdrawals.
Insertion/Withdrawal Force: 1 pound (depending on
mating jack).
ELECTRICAL
Insulation Resistance: > 100 megohms
Dielectric Withstanding Voltage: 250V AC.
ENVIRONMENTAL
Thermal Range: -55°C to +85°C (non-operating);
-20°C to 65°C (operating).
Thermal Shock: Mil-Std 202, Method 107.
Humidity: Mil-Std 202, Method 106.
Salt Spray: Mil-Std 202, Method 101.
No. 850 (typical)
No. 851 (typical)
DIMENSIONS ARE FOR REFERENCE ONLY
www.switchcraft.com
Inch
(mm)
? Registered trademark of Switchcraft, Inc.
Note: Contact your Switchcraft Representative for price and delivery
